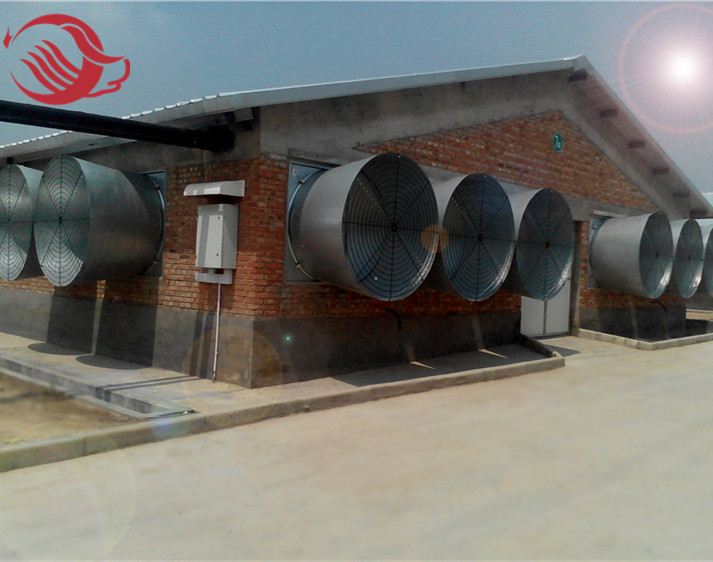

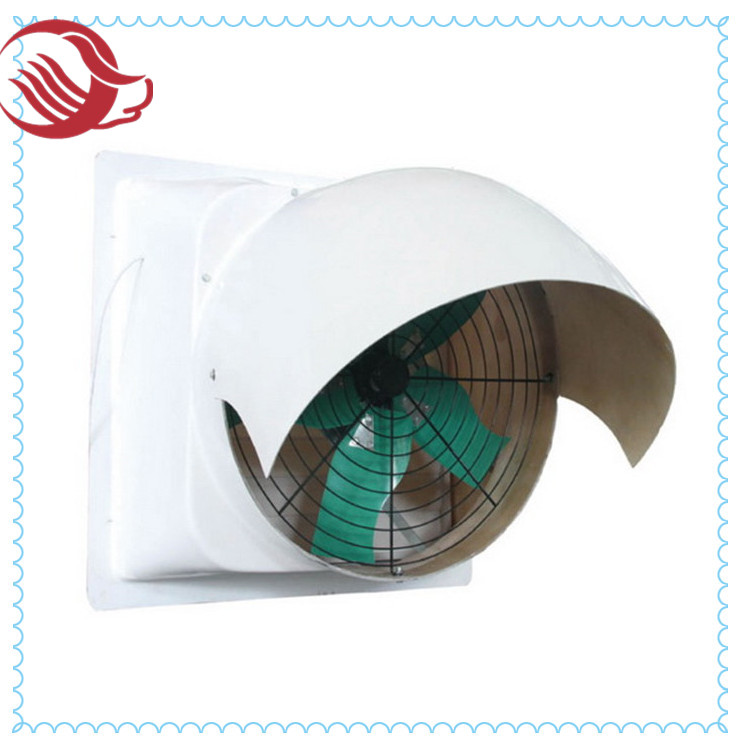

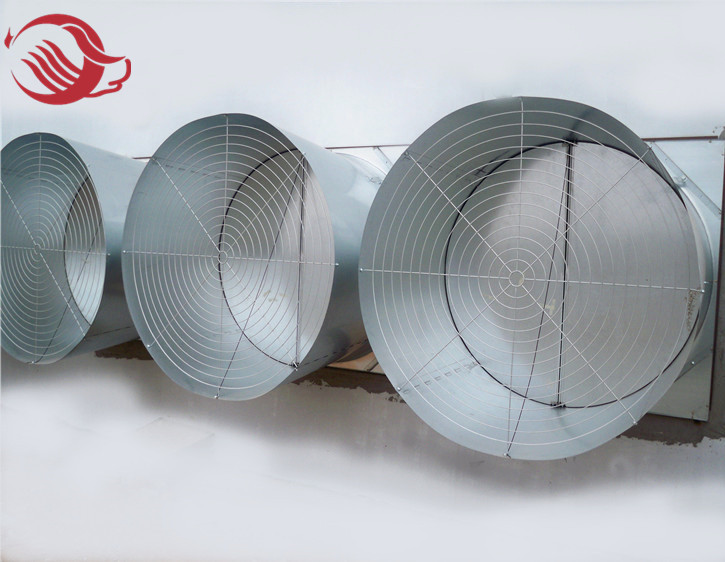

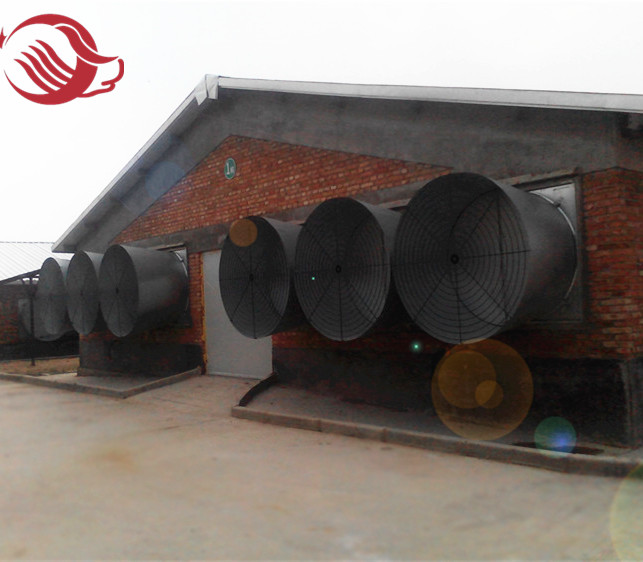

Poultry chicken house ventilation equipment Butterfly cone ventilation fan

1, Material is high quality 275g galvanized and fiberglass with anti-corrosion.

2,Motors with high efficiency, low consumption, pass simulation test in different farm condition.

3, Air speed can be adjusted accordingly to needs and it is electric saving.

Name	Diameter of Blade mm	Rated Voltage V	Rated Current A	Input Power kw	Motor Speed r/min	Air Flow m³/h	Noise db	Installation Dimension mm
24’’Speed Fan	630	220	0.37	2.7	930	0-12000	<=70	800800450
36’’Hanging Fan	910	380	0.4	1.6	1400	23000	<=64	10001000450
36’’Box Fan with Centrifugal System	910	380/220	0.4/0.55	1.6	1400	20800	<=62	10001000450
50’’ Box Fan with Centrifugal System	1270	380/220	1.1/1.5	2.8	1440	43500	<=62	13801380450
50’’ Hanging Fan	1270	380	1.1	2.8	1440	46000	<=65	13801380450
50’’Cone Fan	1270	380/220	1.1/1.5	2.8	1440	49380	<=65	138013801180
50’’Butterfly Cone Fan	1270	380/220	1.1/1.5	2.8	1440	51020	<=65	138013801300
