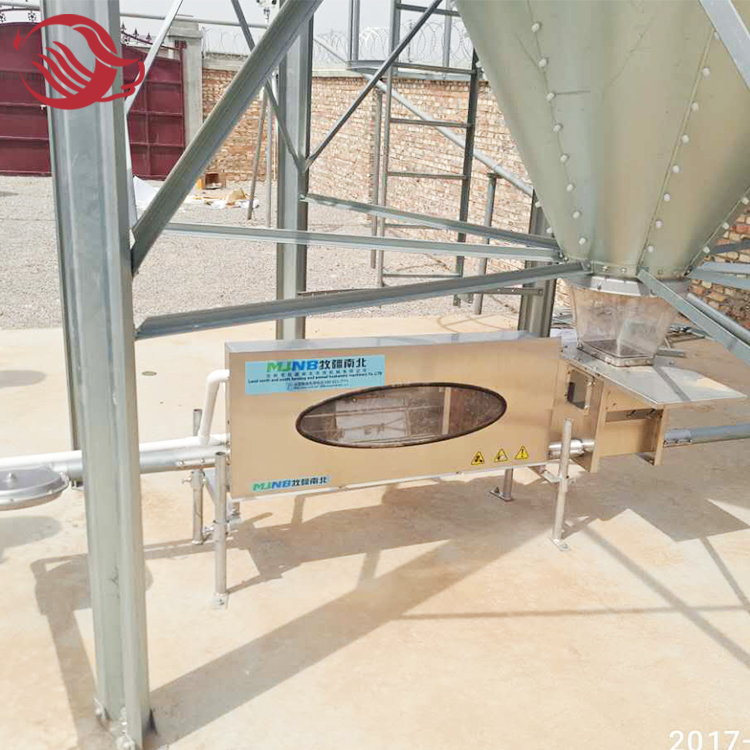

1, Main driving device
-
Shell is stainless steel, corrosion resistance, install in-door and out-door are both available.
-
High quality of drive motor, imported and made in China are both available.
-
Cycloid pin gear, worm gear and wheel gear are both available.
-
Chain wheel material is fiberglass nylon.
-
Imported capacitor with high quality.
2,Disc-chain conveying part
-
Material of conveying pipe is galvanized, outer diameter is 60mm, thickness is 1.5mm.
-
High strengthen, abrasion resistance of chain, enhanced service life.
-
Material of disc is fiberglass nylon, same material with corner and chain wheel, could reduce frication. Disc diameter is 45mm.
3, 90°corner
-
Corner shell material is polycarbonate, has high shock resistance, electric insulation, good performance on temperature resistance.
-
Inner part material is fiberglass nylon.
-
Hardware is stainless steel.

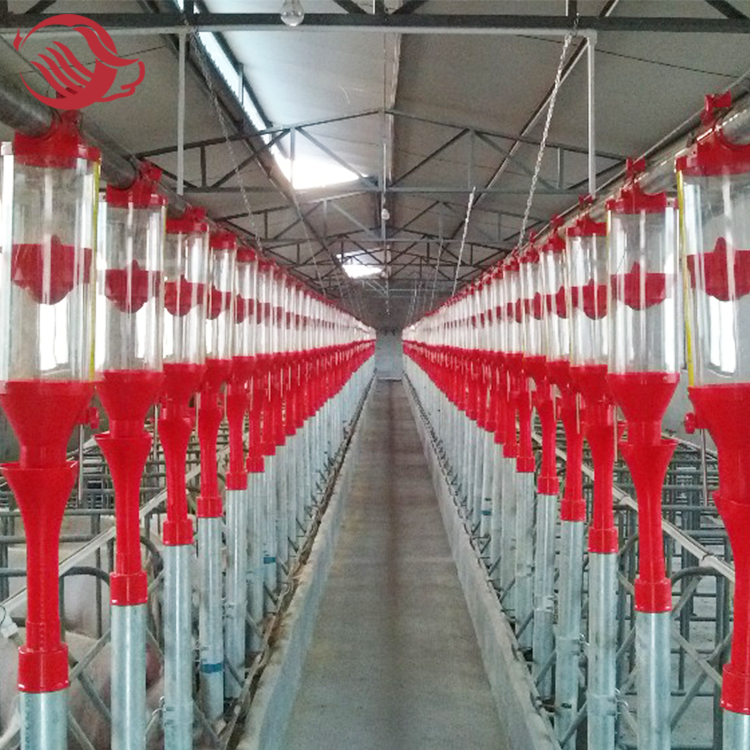

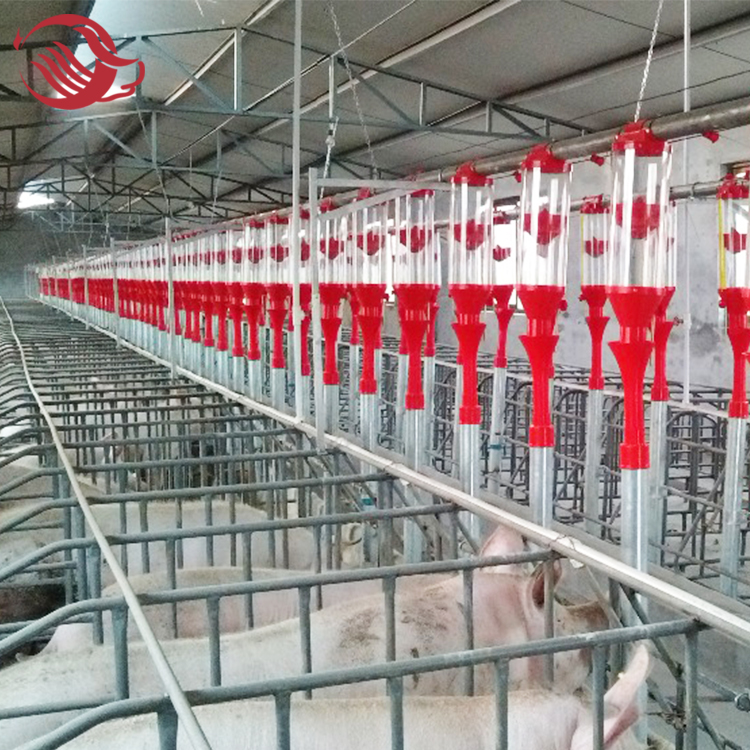

4, Feed doser
-
Material is polycarbonate, has high shock resistance, electric insulation, good performance on temperature resistance.
-
High transparency, precise scale, anti-corrosion.

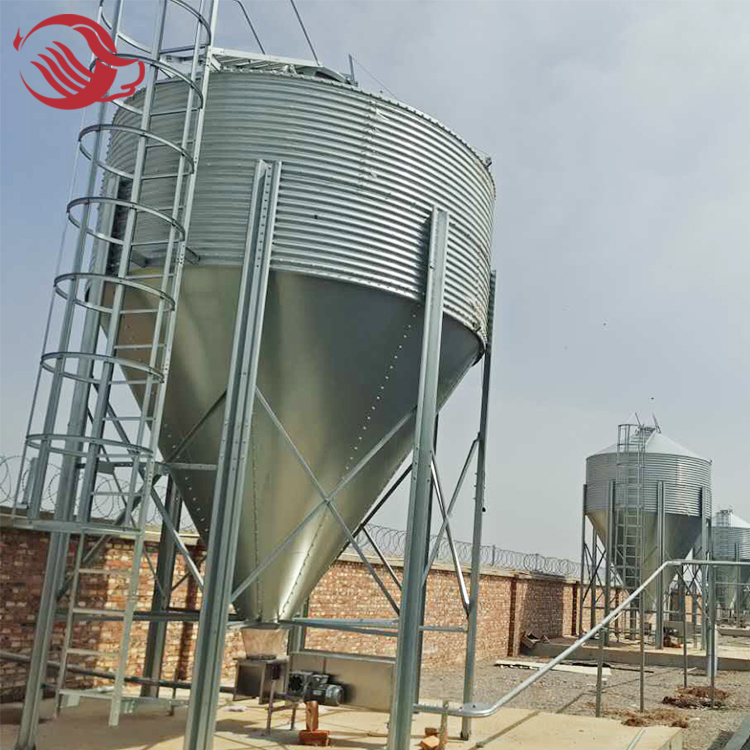

5, Silo
Material of silo is hot-dip galvanized or fiberglass.
Different capacity to meet farm's feeding request.
