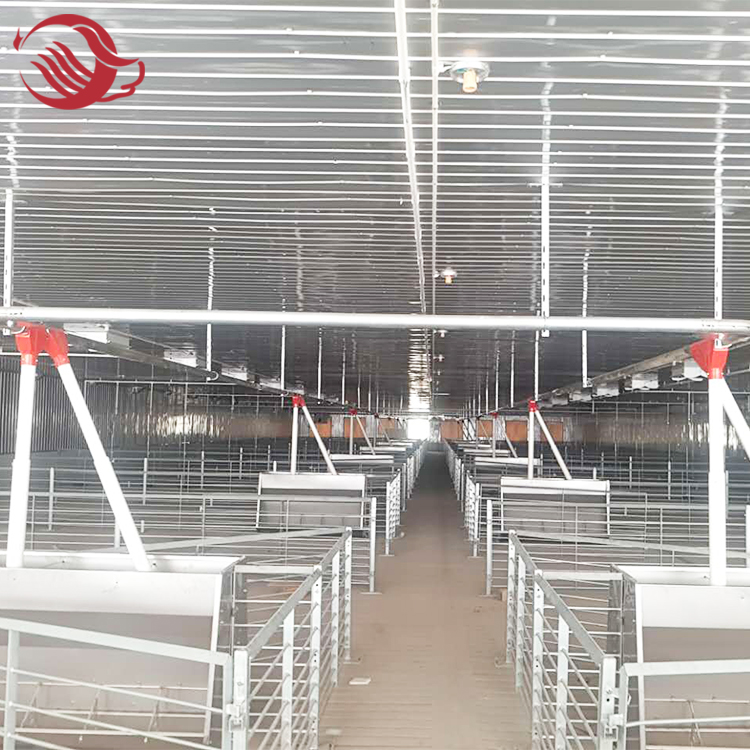

Pig farm automatic feeding system

  • Pig farm automatic feeding system
  • Pig farm automatic feeding system
  • Pig farm automatic feeding system
  • Pig farm automatic feeding system
  • Pig farm automatic feeding system
  • Pig farm automatic feeding system
  • Pig farm automatic feeding system
  • Pig farm automatic feeding system
Pig farm automatic feeding systemPig farm automatic feeding systemPig farm automatic feeding systemPig farm automatic feeding systemPig farm automatic feeding systemPig farm automatic feeding systemPig farm automatic feeding systemPig farm automatic feeding system

Pig farm automatic feeding system

Product Features:

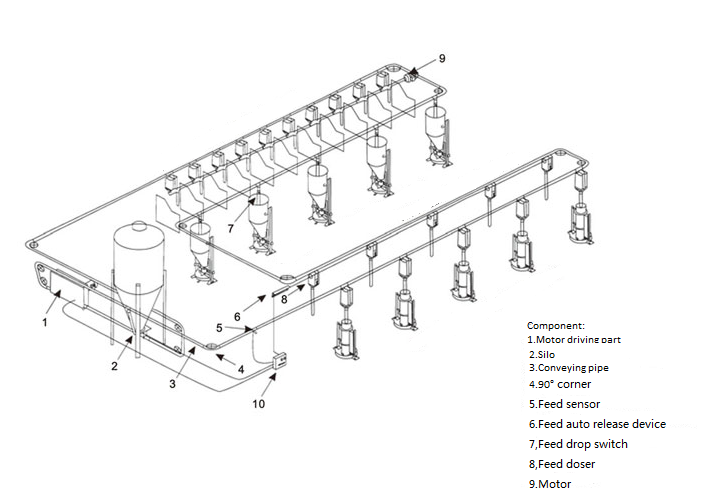

1, Design feeding line according to pig farm’s requested.

2, 90degree corner could make sure feeding conveying smoothly.

3, Feed conveying based on fixed timing and fix qty, it is feed saving, labor saving.

4, Disc-chain conveying system is usually suitable for weaning stall and fatten stall.


Product Show:

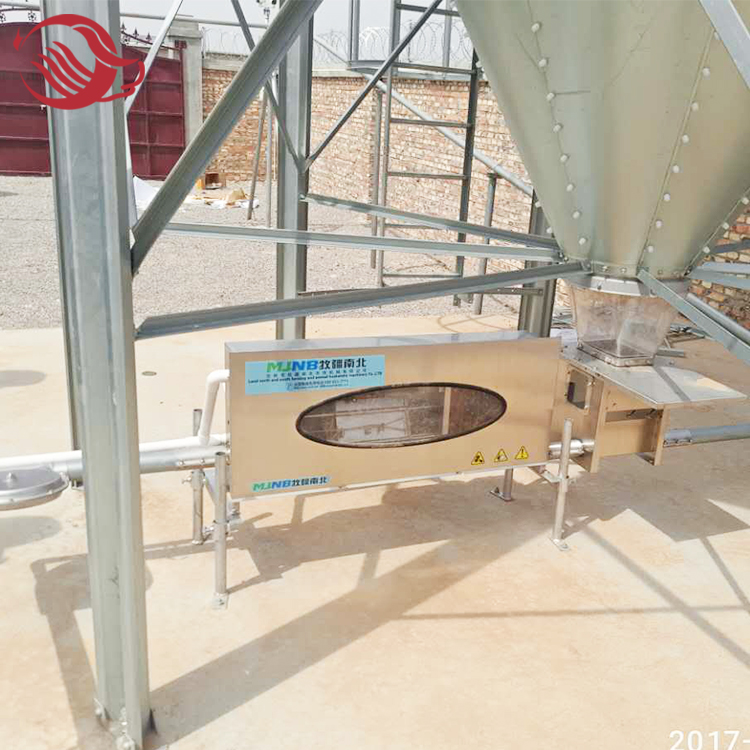

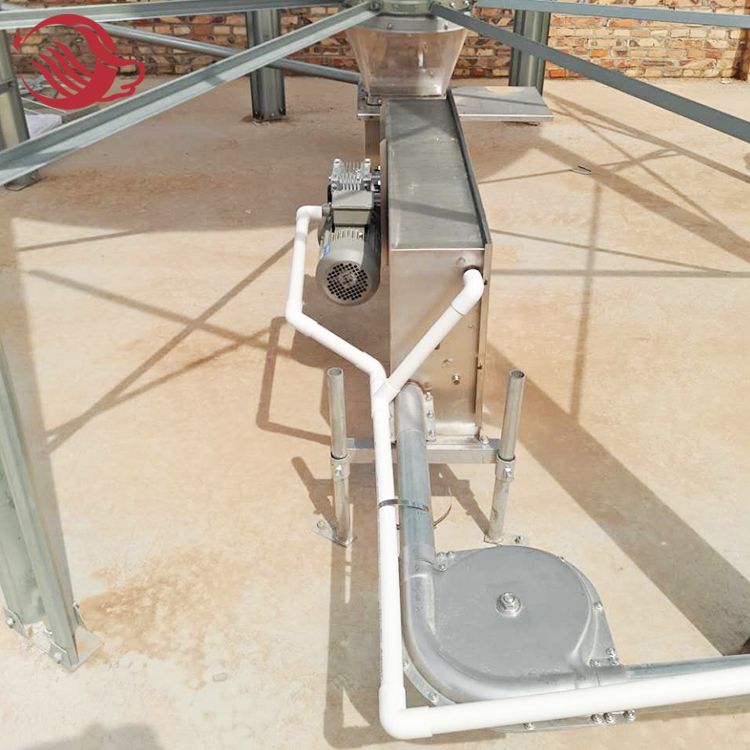

1, Main driving device

◆ Shell is stainless steel, corrosion resistance, install in-door and out-door are both available.

◆ High quality of drive motor, imported and made in China are both available.

Cycloid pin gear, worm gear and wheel gear are both available.

◆ Chain wheel material is fiberglass nylon.

◆ Imported capacitor with high quality.

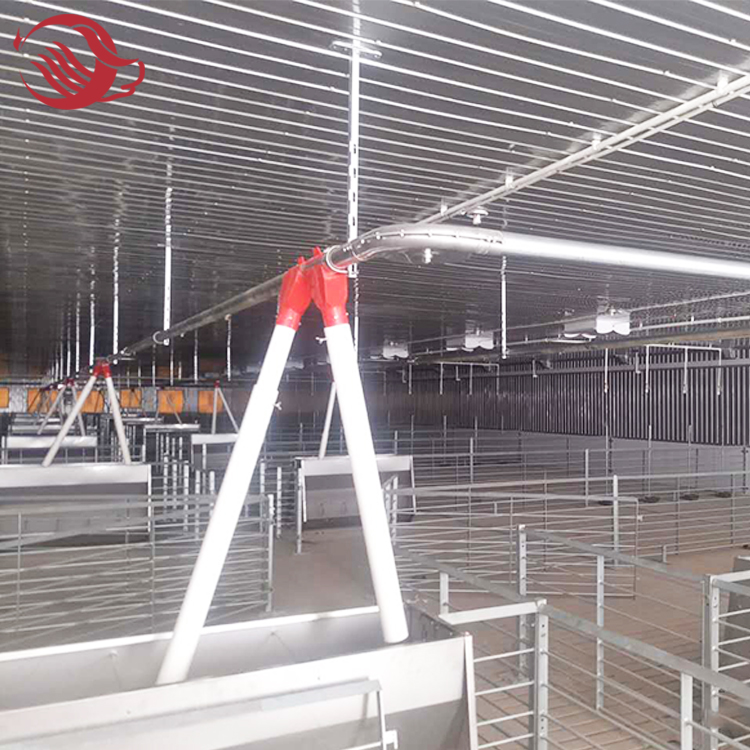

2,Disc-chain conveying part

◆ Material of conveying pipe is galvanized, outer diameter is 60mm, thickness is 1.5mm.

◆ High strengthen, abrasion resistance of chain, enhanced service life.

◆ Material of disc is fiberglass nylon, same material with corner and chain wheel, could reduce frication. Disc diameter is 45mm.


3, 90°corner

◆ Corner shell material is polycarbonate, has high shock resistance, electric insulation, good performance on temperature resistance.

◆ Inner part material is fiberglass nylon.

◆ Hardware is stainless steel.

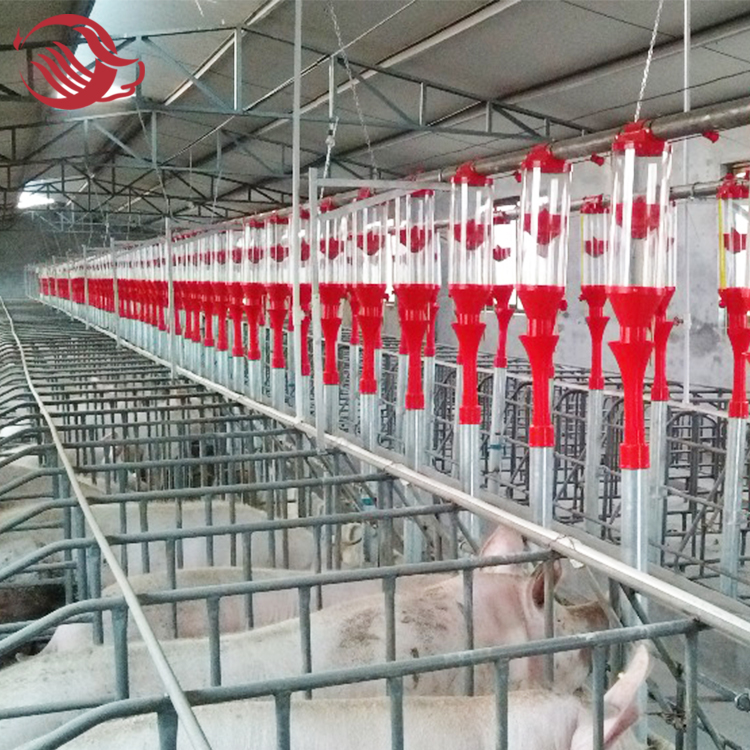

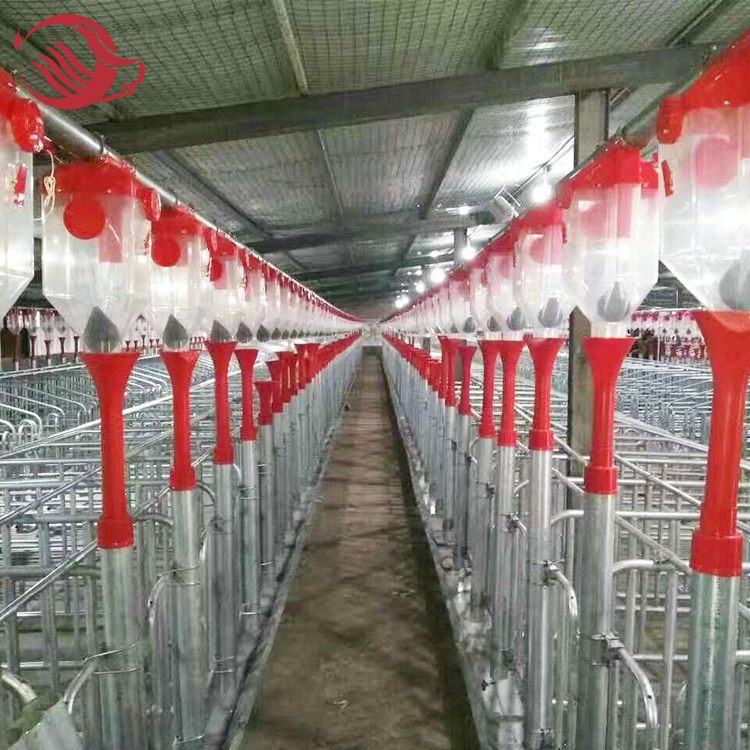

4, Feed doser

◆ Material is polycarbonate, has high shock resistance, electric insulation, good performance on temperature resistance.

◆ High transparency, precise scale, anti-corrosion.

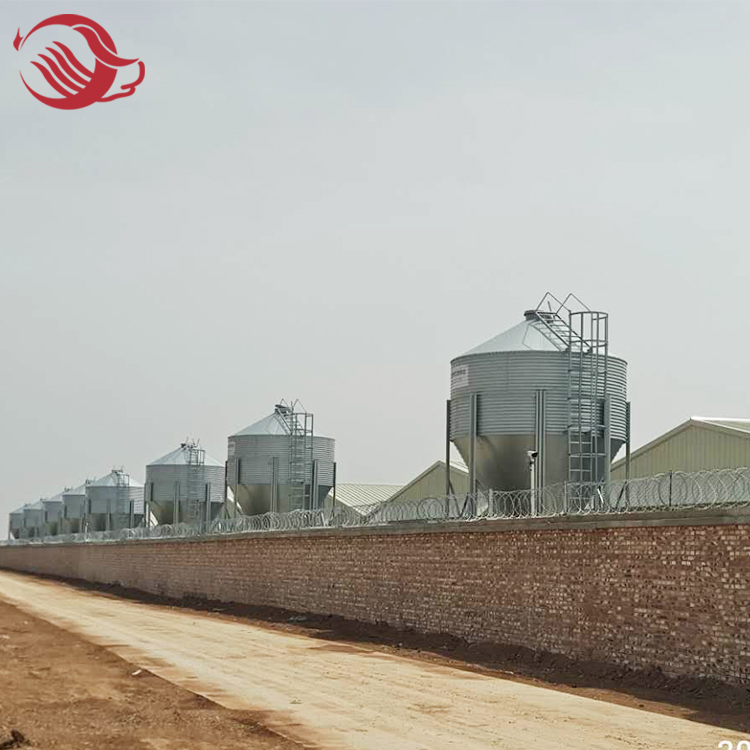

5, Silo

◆ Material of silo is hot-dip galvanized or fiberglass.

◆ Different capacity to meet farm’s feeding request.
